Construction

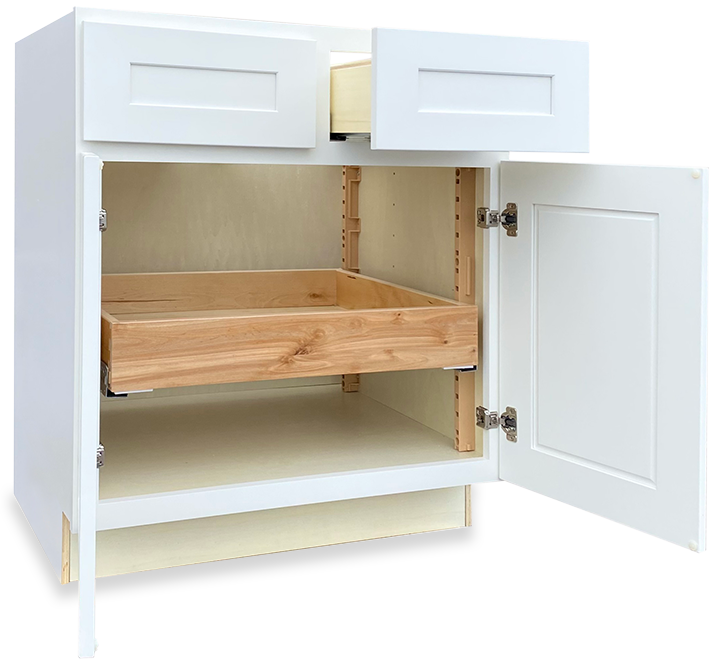

Hover over hotspots below for cabinet information.

FACE FRAMES

Constructed from 3/4” hardwoods.  Base and wall frames have 11/2” stiles and rails.  Base cabinets have a 1” reveal at the top.  Bottom and sides have 1/4” reveal.

G

FACE FRAMES

Constructed from 3/4” hardwoods.  Base and wall frames have 11/2” stiles and rails.  Base cabinets have a 1” reveal at the top.  Bottom and sides have 1/4” reveal.

DOORS

Premium full overlay door styles with soft-close door hinges.  Stained doors are solid hardwood and painted doors are MDF.

PANELS

Constructed from 1/2” plywood with an option for finished ends.  Ends, tops, and bottoms are captured in frame grooves.  Backs are captured in end panel grooves.

HINGES

6-way fully concealed 108° self-closing cup hinges that allow easy height, width, and depth adjustment are standard.

CABINET INTERIOR

Sealed with a clear-coat finish.  Finished Interior* option may be selected on a wall, base and tall cabinets up to 24” deep.

BACKS

For ease of installation, the backs are solid 1/2” plywood.  Base cabinet backs extend to the floor providing optional structural stability.

DRAWERS

Drawer boxes are all plywood with dovetail joints and clear-coat.  Bottoms are fully
captured plywood.   Glides are under-mount, full extension soft-close.

TOE KICKS

Constructed from 1/2” unfinished plywood.  They are inset into the cabinet box 3 1/2” and are 4 1/2” high.  Toe Kick Material (TKS) is required to finish the toe kick space.

ROLL OUT TRAY & PILASTER KIT (optional)

Dovetail construction for roll-out tray box with under mount glides.  Pilasters are
installed at each corner of a base or pantry cabinet (pantries get 2 sets of pilaster kits) with slots allowing for approximately 1” height adjustments.

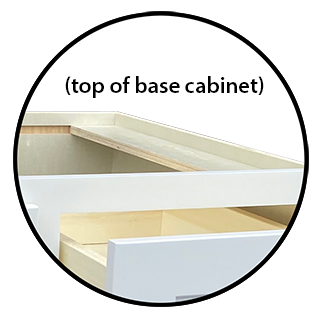

I-BEAM STRETCHERS

All base cabinets have a 3/8” x 3” I-beam stretcher on the top left and right sides. The stretchers are captured by grooves in the frame, end panels and back panel to provide reinforcement to the base cabinet construction.

Cabinet Specifications

FACE FRAMES

Constructed from 3/4” hardwoods.  Base and wall frames have 1 1/2” stiles and rails.  Base cabinets have a 1” reveal at the top.  Bottom and sides have 1/4” reveal.

DOORS

Premium full overlay door styles with soft-close door hinges.  Stained doors are solid hardwood and painted doors are MDF.

PANELS

Constructed from 1/2” plywood with option for finished ends.  Ends, tops and bottoms are captured in frame grooves.  Backs are captured in end panel grooves.

SHELVES (not shown)

Constructed from 3/4” plywood and finished on both sides.  Base shelves are half-depth adjustable at 2 1/2” increments.  All secured for shipment with locking shelf clips utilizing 1/4” diameter dowel.

HINGES

6-way fully concealed 108° self-closing cup hinges that allow easy height, width, and depth adjustment are standard.

CABINET INTERIOR

Sealed with clear-coat finish.  Finished Interior option may be selected on wall, base and tall cabinets up to 24” deep.

BACKS

For ease of installation, the backs are solid 1/2” plywood.  Base cabinet backs extend to the floor providing optional structural stability.

DRAWERS

Drawer boxes are all plywood with dovetail joints and clear-coat.  The bottoms are fully captured plywood.   Glides are under-mount, full extension soft-close.

TOE KICKS

Constructed from 1/2” unfinished plywood.  They are inset into the cabinet box 3 1/2” and are 4 1/2” high.  Toe Kick Material (TKS) is required to finish the toe kick space.

ROLL OUT TRAY & PILASTER KIT (optional)

Dovetail construction for roll-out tray box with under mount glides.  Pilasters are installed at each corner of a base or pantry cabinet (pantries get 2 sets of pilaster kits) with slots allowing for approximately 1” height adjustments.
