RiverRun SpecBook
Walls
Standard Walls:
Wall Cabinet 12″ High, 2 Door
– No Shelf
Wall Cabinet 15″ High, 1 Door
– No Shelf
– Not Available in Hampton, Dalton or Lenox Door Styles
Wall Cabinet 15″ High, 2 Doors
– No Shelf
* Has 3” Center Stile
# Not Available in Hampton or Dalton Door Styles
Wall Cabinet 18″ High, 2 Doors
– No Shelf
Wall Cabinet 21″ High, 2 Doors
– One Shelf
Wall Cabinet 24″ High, 2 Doors
– One Shelf
Wall Cabinet 27″ High, 2 Doors
– One Shelf
Wall Cabinet 24″ High,
24″ Deep, 2 Doors
– One Shelf
– Refrigerator Cabinet
Wall Cabinet 30″ High, 1 Door
– Two Shelves
Wall Cabinet 36″ High, 1 Door
– Two Shelves
Wall Cabinet 30″ High, 2 Doors
– Two Shelves
* Has 3” Center Stile
Wall Cabinet 36″ High, 2 Doors
– Two Shelves
* Has 3” Center Stile
Wall Cabinet 42″ High, 1 Door
– Three Shelves
Wall Cabinet 42″ High, 2 Doors
– Three Shelves
Corner Walls:
Easy Reach Corner Wall Cabinet, 24″ Wide
– Double Hinged Doors
– Order Lazy Susan Separately, Free Install
– Not Available in Hampton or Dalton Door Styles
– (# of shelves)
Corner Wall Cabinet 15″ High,
1 Door
Corner Wall Cabinet 30″ High,
1 Door
– Two Shelves
Corner Wall Cabinet 36″ High,
1 Door
– Two Shelves
Corner Wall Cabinet 36″ High,
15″ Deep, 1 Door
– Two Shelves
Corner Wall Cabinet 42″ High,
1 Door
– Three Shelves
Corner Wall Cabinet 42″ High,
15″ Deep, 1 Door
– Three Shelves
Blind Walls:
Blind Wall Cabinet 30″ High,
1 Door
– Two Shelves
– Choose Side to Hinge Door
– Stile = 4 3/4” wide
– Shown: Blind Right with Door on Left
Blind Wall Cabinet 36″ High,
1 Door
– Two Shelves
– Choose Side to Hinge Door
– Stile = 4 3/4” wide
– Shown: Blind Right with Door on Left
Blind Wall Cabinet 42″ High,
1 Door
– Two Shelves
– Choose Side to Hinge Door
– Stile = 4 3/4” wide
– Shown: Blind Right with Door on Left
Specialty Walls:
Wall Cabinet 30″ High,
1/4 Round Shelves
– Two Fixed Shelves
Wall Cabinet 36″ High,
1/4 Round Shelves
– Two Fixed Shelves
Wall Cabinet 42″ High,
1/4 Round Shelves
– Three Fixed Shelves
Microwave Wall Cabinet,
18″ High
– Shelf is 17” Deep
– Opening Dimensions: 27” W x 14 1/4” H x 17” D
– Finished Interior and Exterior is Standard

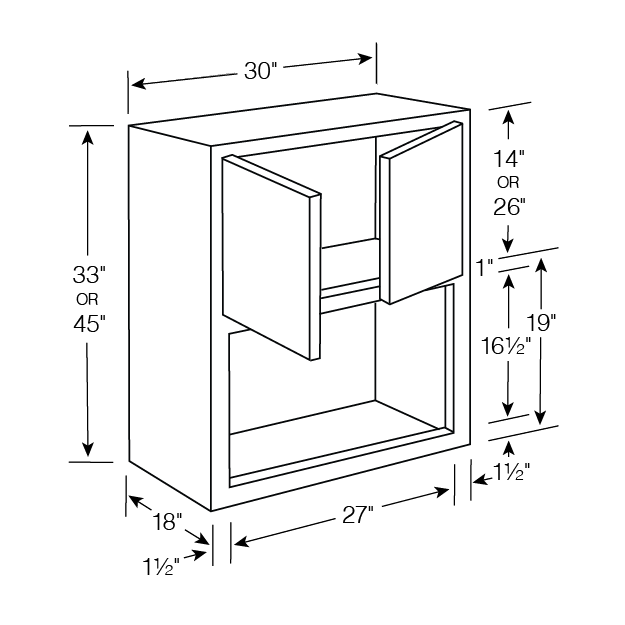

Microwave Wall Cabinet,
33″ High
– Supplied with an Overlay Face Frame
– Opening Dimensions: 25” W x 14 3/8” H Trimmable
– Finished Interiors and Finished Ends are not Standard
and Must be Specified if Desired.
Microwave Wall Cabinet,
45″ High
– Supplied with an Overlay Face Frame
– Opening Dimensions: 25” W x 14 3/8” H Trimmable
– Finished Interiors and Finished Ends are not Standard
and Must be Specified if Desired.
Diagonal Appliance Garage
– Single Door Hinged to Side Stile
– No Bottom Panel, No Under Rail
– Matches CW24 (Length & Width)
– Finished Exterior is Standard

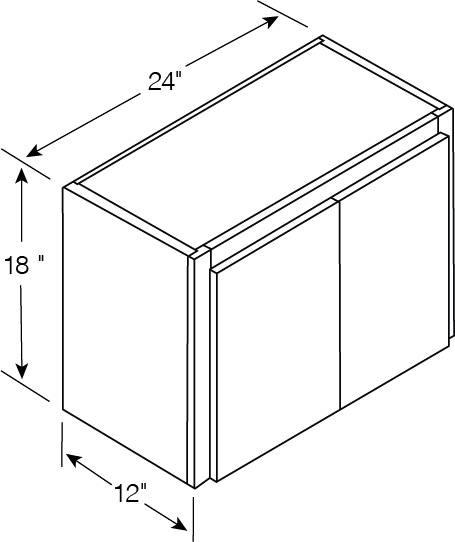

Appliance Garage with Doors
– Full Framed Cabinet with Bottom Panel
– Can be Used as a W2418
Wall Wine Racks
– Holds 18 to 20 Bottles
– Finished Interior and Exterior is Standard
Wine Cubbies
– Can be Installed Vertically or Horizontally
– Made of 3/4” Veneer Plywood for Interiors
– Finished to Match and Front Edges Banded
Wall Organizers & Shelves,
30″ Wide
– Opening Widths are: 10 1/2” and 5 1/4”
– Made of 3/4” Veneer Plywood for Interiors
– Finished to Match and Front Edges Banded
Wall Organizers & Shelves,
36″ Wide
– Opening Widths are: 10 1/2” and 5 1/2”
– Made of 3/4” Veneer Plywood for Interiors
– Finished to Match and Front Edges Banded
Mullion Doors – 1 Door
– Glass Not Supplied
– Available for Hampton door styles only
– See Online Order Site for Available Colors/Styles
– See Prep for Glass Doors for Additional Options
– While Supplies Last
Mullion Doors – 2 Doors
– Glass Not Supplied
– Available for Hampton door styles only
– See Online Order Site for Available Colors/Styles
– See Prep for Glass Doors for Additional Options
– While Supplies Last
Wall End Panel
(Loose Decorative Door)
– WEPs Match Door
– Reveals – 1/2” Less Width and 11/4” Less Height
– Cabinet Side that is Receiving WEP must be Finished
or Purchase Skin Separately if Installing in the Field
Wall End Panel Kits
– Not Installed
– Kits Include WEP and Finished Skin
– Cabinet purchased separately
